VICWA® Para Aramid Filaments Yarn
Para aramid filament for bullet proof and optical cable
VICWA® Para-aramid filaments provides extremely high strength and modulus with light weight, also shows excellent flame and abrasion resistance.
VICWA® para-aramid filament keeps low-density and high-strength. With high strength-to-weight ratio (5 times higher than steel), para-aramid fiber is widely used in various applications including cut-protection, tyre, optical cable, ballistics-protection, rubber and plastic even in high-speed rail and aerospace field. VICWA® filament also possesses of low flammability and excellent thermal stability, enabling its mechanical strength decay within 20% under 200°C, which is important in heat protection, friction and sealing fields.
To meet varied requirements of manufacturers, VICWA® provides complete and customized solution by applying wide range of linear densities and yarn counts.
Features:
- High strength-to-weight ratio
- Heat and chemical resistance

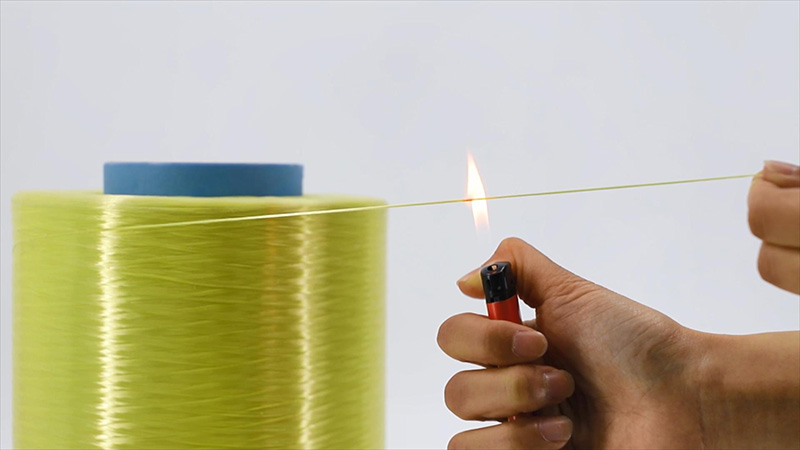

- Flame retardant and fireproofing
- Cut resistance and tenacity
- Electrical insulation
Main Applications：
- Optical cable
- Bulletproof, woven/UD fabric
- Ropes, conveyor belts, bags
- Sealing of pump shaft
- Tire cord, hose, RTP pipe
Technical Data of VICWA Filaments Yarn :
| Yarn type | Linear density （nominal） | Breaking tenacity | Breaking strength | Elongation at Break | Modulus | Finish content | Moisture content | ||
| Den | dtex | g/d | N | % | GPa | % | % | ||
| Standard | S02 | 200 | 220 | 22 | 44 | 3.5 | 76 | 1 | 7 |
| S04 | 400 | 440 | 22 | 88 | 3.5 | 76 | 1 | 7 | |
| S06 | 600 | 660 | 22 | 132 | 3.5 | 76 | 1 | 7 | |
| S08 | 840 | 930 | 22 | 184 | 3.45 | 78 | 1 | 7 | |
| S10 | 1000 | 1100 | 22 | 220 | 3.45 | 78 | 1 | 7 | |
| S15 | 1500 | 1670 | 22 | 330 | 3.4 | 80 | 1 | 7 | |
| S30 | 3000 | 3300 | 22 | 660 | 3.4 | 80 | 1 | 7 | |
| High strength | HS08 | 840 | 930 | 24.5 | 205 | 3.5 | 76 | 1 | 7 |
| HS10 | 1000 | 1100 | 24.5 | 245 | 3.5 | 76 | 1 | 7 | |
| HS15 | 1500 | 1670 | 24.5 | 367 | 3.5 | 76 | 1 | 7 | |
| High modulus | HM15 | 1420 | 1580 | 21 | 298 | 2.8 | 100 | 0.8 | 4 |
| HM30 | 2840 | 3160 | 21 | 596 | 2.8 | 100 | 0.8 | 4 | |
Storage：
VICWA® para-aramid filament yarn should be kept dry in original bags and properly stocked.
Preferably store at room temperature with 35-65% relative humidity.
Avoid the sun, rain and fire.
Para Aramid Filament Yarn Applications：
Packaging：
1. Each bobbin packed in black plastic film bag
Net weight: 5.00kg
2. 23 bobbins per layer and 3layers per carton
Carton size: 110*110*95cm
Net weight: 345.00kg
Gross weight: 445.00kg
Shipment And Transportation：
Shipment by sea: Generally 20 pallets can be loaded into 20 feet container with total net weight of 6,900kg.
